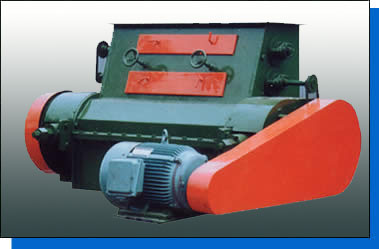

DF crusher, a new model of our product, is particularly designed by the characteristic of raw salt. Its a tooth-shaped double shaft crusher, working mainly by cutting and compressing secondarily. The sizes of the particle are controlled freely within a certain range. Simple structure makes maintenance easy. The equipment works stably and reliably, also resistant to erosion and wear out.

Major Technical Parameters
Parameter Model DF3006 Model DF3008 Model DF3010
Production capability (t/h) 10-3mm 3-0.85mm Dry: 5 Wet: 6
Dry: 4 Wet: 5
Dry: 7 Wet: 8
Dry: 6 Wet: 6
Dry: 9 Wet: 10
Dry: 8 Wet: 8
Power (kw) 13 18.5 22
DimensionsLWH (mm) 166011901050 166013901050 166015901050
Feed Port Dimension(AB) 250613 250813 2501013
Discharge Port Dimension(CD) 670613 670813 6701013
Weight of whole machine (kg) 1360 1610 1890
