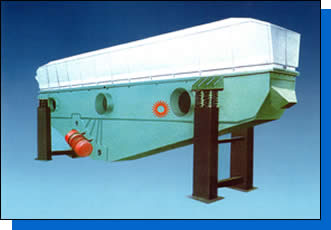

In the model VFB-A vibrating blast drier, the power of vibrating motor makes the processing materials jump to the same definite direction. At the same time, the hot air input from the bottom makes the materials into liquid. In this way, the ideal drying effect reaches by full mixture of materials and hot air. The machine has been widely applied in the drying process of salt

Major Technical Parameters
Item Model VFB-A5 Model VFB-A7 Model VFB-A8
Area of bored plate (m2) 2.5 4.55 8
Weight (t) 3 6 8.4
Dimensions (m) 6¡Á1.2¡Á2.6 7.5¡Á1.7¡Á3.2 10¡Á1.9¡Á4
Output (t/h) 3 5 10
