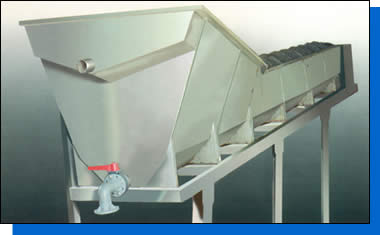

The FLX, screw washer, is particularly designed for crushing and washing salt. It is used for crude salt, medium or large particle salt. The machine is comprised of driving unit, shell and screw belt. Materials and washing liquid are affluxes from the bottom. From middle to upper of the machine, washing liquid is also showered down. Materials are also washed during the conveying. Suspension overflows from the overflow weir. Deposit is periodically discharged from the bottom valves.

Major Technical Parameters
Model Production capacity (t/h) Motor Power (kw) Numbers of screw belt Diameter of screw belt (mm) Inclining degree of equipment
FLX-3 3 4 1 450 18
FLX-5 5 4 1 450 18
FLX-10 10 5.5 2 600 18
FLX-15 15 5.5 3 800 18
