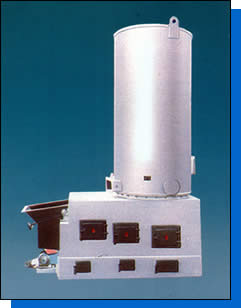

The coal-burning blast furnace, our patented product, has an advanced design of heating indirectly system. The furnace has advantage of high thermal efficiency, reliable capability. It is also easy to operate and maintenance. The furnace shortens the heating time while making the air temperature higher and has been widely applied as heat resource in salt manufacturing.

Major Technical Parameters
No Model Heating load(10,000 large calorie/hour) Heating Air Temperature(¡æ) Air supply volume(m3/h) Coal consumption(Kg/h) Dimension(L¡ÁW¡ÁH) Weight(T) Matching Fluidized Bed
1 LRFL-35 35 130~250 1000~4900 93 2¡Á2¡Á4.1 5.6 VFB-A5
2 LRFL-60 60 130~250 17000~8000 160 2.3¡Á2.3¡Á5 8.3 VFB-A7
FDRFL-60 4.3¡Á2.2¡Á5.5 19.8
3 FDRFL-100 100 130~250 29000~14000 264 4.4¡Á5.1¡Á6.3 25 VFB-A8
FG-10
4 FDRFL-150 150 130~250 43900~21000 396 4.8¡Á5.7¡Á8.3 33 FG-15
